Yuantai new type single Girder electric 10 ton mini gantry crane price

Product Categories

electric hoist [67]
single girder gantry crane [50]
crane parts [12]
jib crane [49]
double girder overhead crane [57]
single girder overhead crane [70]
double girder gantry crane [29]
semi gantry crane [27]
explosion proof wire rope electric hoist [19]
metallurgical electric hoist [13]
electric chain hoist [36]
electric hoist winches [24]

Henan Yuantai Crane Machinery Import&Export Co.,Ltd

Contact Now

Yuantai new type single Girder electric 10 ton mini gantry crane price

Name: Yuantai new type single Girder electric 10 ton mini gantry crane price
Brand: Yuantai
Price: 1 USD

Wholesale Yuantai new type single Girder electric 10 ton mini gantry crane price from china suppliers

Place of Origin : Henan, China (Mainland)

Brand Name : Yuantai

Certification : CE/ISO/SGS

Model Number : MH

Rated Lifting Moment : 100kn

Rated Loading Capacity : 10 ton

Max. Lifting Load : 10 ton

Max. Lifting Height : 9m

Span : 30m

Application : Widely

Feature : Gantry Crane

MOQ : 1

Price : negotiate

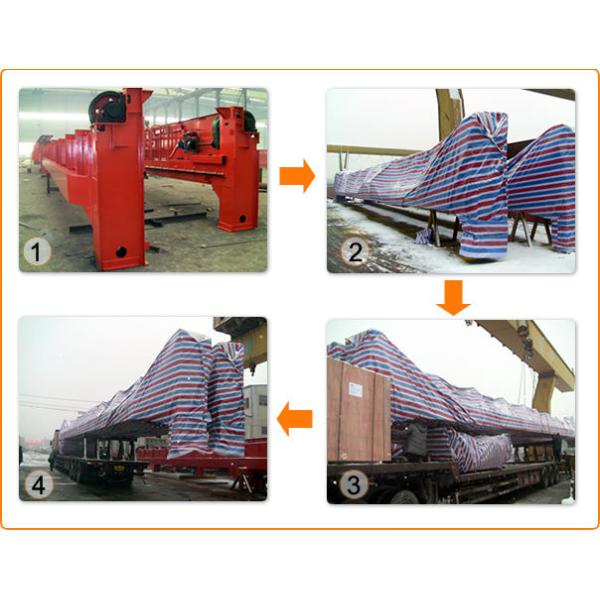

Packaging Details : Packaged by woven plastic woven cloth.electricals and parts packaged by plywood crate.MH type yuanta

Delivery Time : Within 30days after receiving the deposit

Payment Terms : TT/LC/Others

Supply Ability : 10000 sets per year

Contact Now

Production Description of mini gantry crane price

Yuantai new type single Girder electric 10 ton mini gantry crane price

Designed and made according to JB/T 1306 Electric Double Girder
Crane
The matched hoisting system have MG,MZ,MH,BMG etc according
to the gantry crane.
The light small lifting equipment with running way
Hoisting goods in the factory, warehouse, stockyard.etc.
Banned to use in some dangerous environment, such as easily
combustible,explosive,etc

Span	S(m)	12	16	20	24
Lifting height	m	9	9	9	9
Lifting speed	m/min	8	8	8	8
Trolley speed	m/min	20	20	20	20
Crane speed	m/min	20	20	20	20
Lifting motor	kw	4.5	4.5	4.5	4.5
Trolley motor	kw	0.4	0.4	0.4	0.4
Total weight	kg	8700	9900	12600	14300
Max Wheel Load	KN	42	46	50	54
Track		P24	P24	P24	P24
Main dimension	mm	12	16	20	24
Rail top to main top	H	10635	10685	10785	10885
Wheel base	W	6000	6000	7000	7000
Crane width	B	6400	6400	7500	7500
Hook left limitation	S1	850	850	850	850
Hook right limitation	S2	1300	1300	1300	1300
Left cantilever	L1	3000	4000	5000	6000
Right cantilever	L2	3000	4000	5000	6000

Details show of mini gantry crane price

Gantry Crane Description:

Yuantai new type single Girder electric 10 ton mini gantry crane price

Application of mini gantry crane price

Now our products are widely used in military, aerospace, railway, metallurgy, petrochemical, mineral and many other industries, has won praise from all customers at home and abroad.

Shipping of mini gantry crane price

Yuantai new type single Girder electric 10 ton mini gantry crane price

SEA TRANSPORTATION(PORT):QINGDAO/TIANJIN/SHANGHAI/CUSTOMIZE
RAILWAY TRANSPORTATION
AIR TRANSPORTATION

Payment of mini gantry crane price

Telegraphic Transfer(TT);
Letter of Credit(LC);
Others

Certification

Yuantai new type single Girder electric 10 ton mini gantry crane price Images
